MB22-NBR-60-G1/4-AG

点击图片查看原图

起批 1-10件 11-50件 50件以上
价格 80.00 60.00 55.00
销量: 累计出售 0
评价: 已有 0 条评价
人气: 已有 21 人关注
更新: 2018-09-25
数量: 减少 增加件 库存1000件
立即购买   加入购物车   3D模型下载

联系信息







  • 吸盘直径:22mm
  • 接头尺寸:G1/4外螺纹
  • 产品编码:
 MB22-NBR-60-G1/4-AG钣金行业1.5折波纹真空吸盘,产品编码100942
portant;">

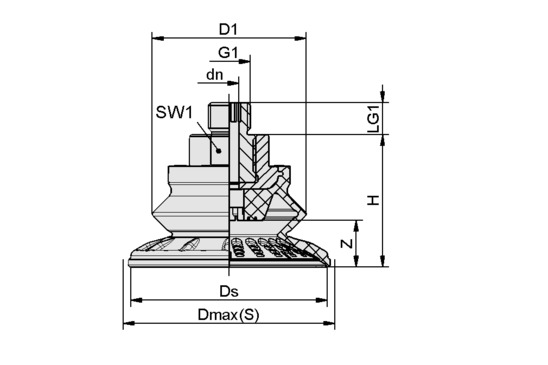

Attribute Value
dn 3.5 mm
D1 22 mm
Dmax(S) 24 mm
Ds 20.6 mm
G1 G1/4"-M
H 25 mm
LG1 10 mm
SW1 16 mm
Z (Stroke) 5.8 mm

portant;">
Attribute Value
Suction force 16 N
Pull-off force 24 N
Lateral force 18 N
Lateral force (oily surface) 6 N
Volume 2.48 cm³
Curve radius (min) (convex) 20 mm
Hose diameter (empf.) d 4 mm
Size 22
Suction cup material Nitrile rubber NBR
Material hardness [Shore A] 60
Weight 7 g
Product family SAB
Number of folds 1.5
portant;">Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
