TGBS42-SI-55-G1/4-AG 2.5折硅橡胶圆形波纹吸盘

点击图片查看原图

起批 1-10件 11-20件 20件以上
价格 28.00 27.00 25.00
销量: 累计出售 0
评价: 已有 0 条评价
人气: 已有 5 人关注
更新: 2019-06-23
数量: 减少 增加件 库存1000件
立即购买   加入购物车   3D模型下载

联系信息







  • 吸盘直径:42mm
  • 吸盘材料:硅橡胶
  • 接头类型:G1/4外螺纹
  • 产品编码:100755

 TGBS42-SI-55-G1/4-AG     2.5折硅橡胶圆形波纹吸盘,产品编码为100755,适用于搬运易损型工件FSG 42 SI-55 G1/4-AG

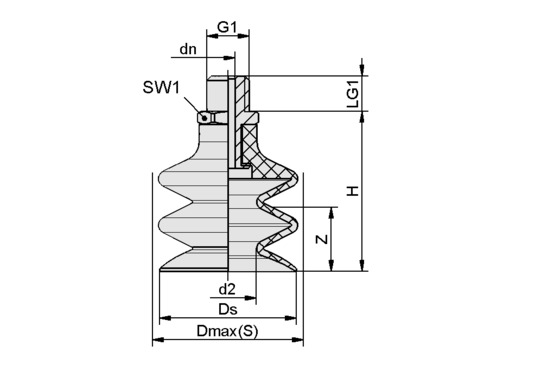

AttributeValue
d217.8 mm
dn4.4 mm
Dmax(S)45 mm
Ds42.6 mm
G1G1/4"-AG
H50 mm
LG111 mm
SW117 mm
Z (Stroke)20 mm
Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
AttributeValue
Suction force14.93 N
Pull-off force44 N
Volume19.786 cm³
Curve radius (min) (convex)75 mm
Hose diameter (empf.) d6 mm
Size42
Number of folds2.5
Suction cup materialSilicone SI
Material hardness [Shore A]55
Weight27 g
Product familyTGBS
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
