    MAOB60*30-NBR-60-G1/4-IG金属薄板专用1.5折椭圆波纹真空吸盘

    点击图片查看原图

    起批 1-10件 11-50件 50件以上
    价格 95.00 93.00 90.00
    销量: 累计出售 0
    评价: 已有 0 条评价
    人气: 已有 113 人关注
    更新: 2019-06-23
    数量: 减少 增加件 库存1000件
    立即购买   加入购物车   3D模型下载

    联系信息







    • 产品尺寸:60*30mm
    • 接头类型:G1/4内螺纹
    • 产品编码:101069

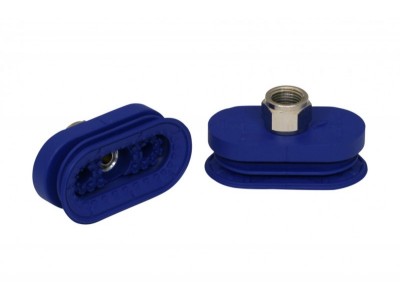

     MAOB60*30-NBR-60-G1/4-IG金属薄板专用1.5折椭圆波纹真空吸盘,产品编码为101069,适用于搬运油性金属薄板和汽车车身零部件。SAOB 60<em></em>x30 NBR-60 G1/4-IG

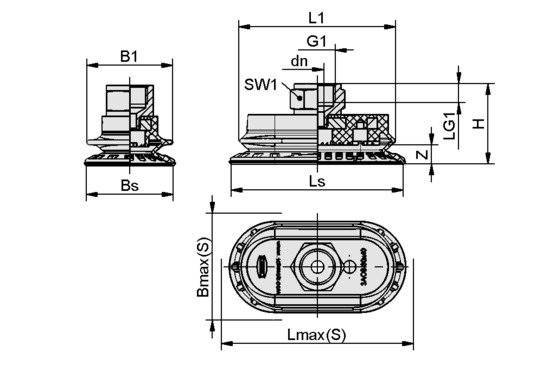

    AttributeValue
    B131 mm
    Bmax(S)33 mm
    Bs30.6 mm
    dn5.5 mm
    G1G1/4"-IG
    H34.5 mm
    L155.7 mm
    LG18 mm
    Lmax(S)63 mm
    Ls60.6 mm
    SW117 mm
    Z (Stroke)7 mm
    Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 External dimension of the suction cup when it is pressed against the workpiece by the vacuum

    AttributeValue
    Suction force38 N
    Pull-off force69.5 N
    Lateral force72.5 N
    Lateral force (oily surface)41.7 N
    Volume10.5 cm³
    Curve radius (min) (convex)18 mm
    Hose diameter (empf.) d4 mm
    Dimensions (LxB)60 x 30
    Suction cup materialNitrile rubber NBR
    Material hardness [Shore A]60
    Number of folds1.5
    Weight35.4 g
    Product familyMAOB
    Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
