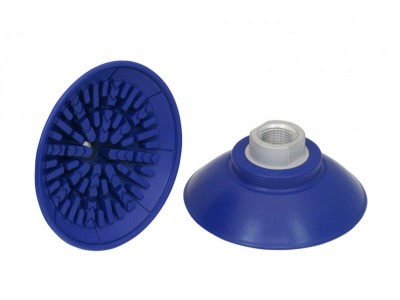

    MA80-NBR-60-G3/8-IG金属薄板专用扁平圆真空吸盘

    点击图片查看原图

    起批 1-10件 11-50件 50件以上
    价格 80.00 78.00 70.00
    销量: 累计出售 0
    评价: 已有 0 条评价
    人气: 已有 116 人关注
    更新: 2019-06-24
    数量: 减少 增加件 库存1000件
    立即购买   加入购物车   3D模型下载

    联系信息







    • 吸盘直径:80mm
    • 接头类型:G3/8内螺纹
    • 产品编码:100920

     MA80-NBR-60-G3/8-IG金属薄板专用扁平圆真空吸盘,产品编码为100920,适用于搬运油性金属薄板和汽车车身零部件。SAF 80 NBR-60 G3/8-IG

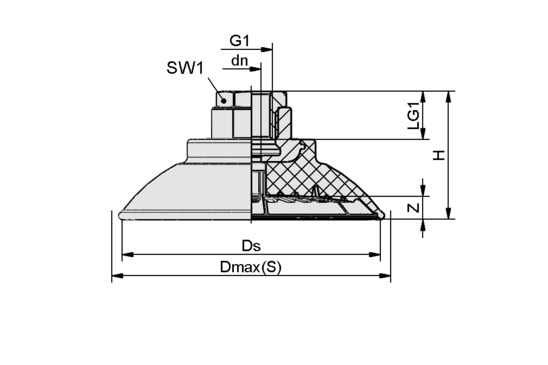

    AttributeValue
    dn6 mm
    Dmax(S)89 mm
    Ds83 mm
    G1G3/8"-IG
    H35 mm
    LG115 mm
    SW122 mm
    Z (Stroke)7.6 mm
    Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 External dimension of the suction cup when it is pressed against the workpiece by the vacuum
    AttributeValue
    Suction force272 N
    Lateral force205 N
    Lateral force (oily surface)180 N
    Volume36.7 cm³
    Curve radius (min) (convex)100 mm
    Hose diameter (empf.) d6 mm
    Size80
    Suction cup materialNitrile rubber NBR
    Material hardness [Shore A]60
    Weight56 g
    Number of folds0
    Product familyMA
    Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
