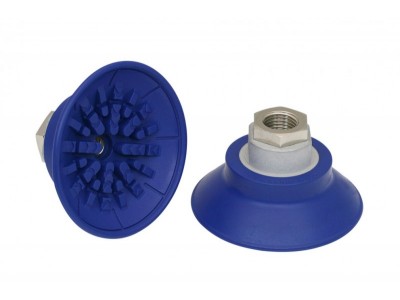

    MA60-NBR-G1/4-IG金属薄板专用扁平圆真空吸盘

    点击图片查看原图

    起批 1-10件 11-50件 50件以上
    价格 146.00 116.80 73.00
    销量: 累计出售 0
    评价: 已有 0 条评价
    人气: 已有 210 人关注
    更新: 2018-11-03
    数量: 减少 增加件 库存1000件
    立即购买   加入购物车   3D模型下载

    联系信息







    • 吸盘直径:60mm
    • 接头类型:G1/4内螺纹
    • 产品编码:100907
     MA60-NBR-G1/4-IG金属薄板专用扁平圆真空吸盘,产品编码为100907,适用于搬运油性金属薄板和汽车车身零部件。SAF 60 NBR-60 G1/4-IG
    Attribute Value
    dn 6 mm
    Dmax(S) 67 mm
    Ds 60.6 mm
    G1 G1/4"-IG
    H 36 mm
    LG1 15 mm
    SW1 22 mm
    Z (Stroke) 6 mm
    Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 External dimension of the suction cup when it is pressed against the workpiece by the vacuum
    Attribute Value
    Suction force 150 N
    Lateral force 105 N
    Lateral force (oily surface) 85 N
    Volume 16.7 cm³
    Curve radius (min) (convex) 75 mm
    Hose diameter (empf.) d 6 mm
    Size 60
    Suction cup material Nitrile rubber NBR
    Material hardness [Shore A] 60
    Weight 37.1 g
    Number of folds 0
    Product family MA
    Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
